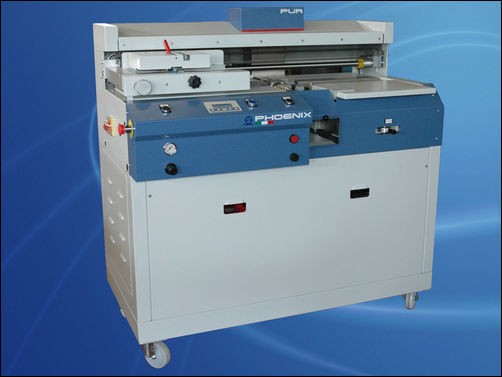

Phoenix PUR Auto - Art.0315Book size min./max. L x H 120 x 110 / 380 x 320
Cover size min./max. 120 x 220 / 380 x 700
Block/spine thickness 1 – 50 mm
Cycles per hour 200
Milling equalization (single sheet) 0,5 mm
Milling depth ( folding paper) 2 mm (optional)
Fiber opening tools special low residual dust emissions
Paper chip suction device
Device PUR/ Hot Meld for gluing milled or sewn book spine-no emissions
Device PUR/ Hot Meld - for gluing one or two side of book block – individually selectable-no emissions
Capacity of tank PUR/ Hot Meld - Kg 1
Cut-off glue - spine and side
Device for cleaning and sealing “ automatically and rapidly” of the glue appl. unit
Nipping station device “ self-adjusting” manual handling or electrical (optional)
Power requirement 220V/single phase-50/60 Hz-3 Kw
Machine dimensions L 1270mm – H 1100mm– P 800mm (standard)
Machine Weight Kg 240
